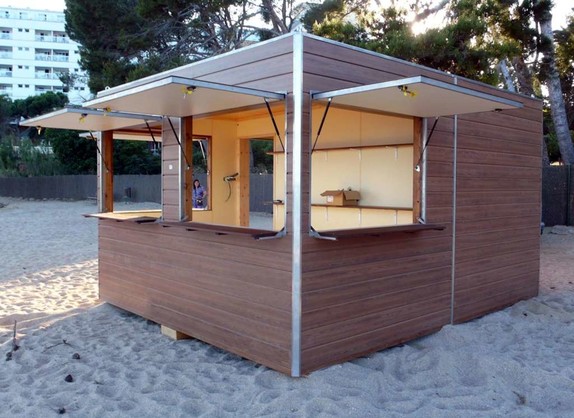

Beach bar unit

Its sizes, limited by its functionality in transport, can be:

3.00 x 2.45 x 2.45 m. (height)

4.00 x 2.45 x 2.45 m. (height)

5.00 x 2.45 x 2.45 m. (height)

5.50 x 2.45 x 2.45 m. (height)

Two or more units also can be attached to get more surface.

It allows to be handled easily with a low tonnage crane, what makes it easy to hibernate.

1.500 kg

1.800 kg

2.000 kg

2.200 kg

Structure, can be sight, made of treated wood with risk class number 4, made of planks of 70 mm thick, or it can be covered with wersalite and AISI 316 stainless steel.

Outside walls, can be made of pressure-treated wood with class risk certification 4, with tongue and groove joint of 130 x 22 mm width, with an exterior finish with UV protect varnish, or made of wersalite, it is a material made of resins which is very resistant, this material supports solar rays without losing its color and is totally waterproof, does not become deformed being maintenance free. Due to the fact that it is a material with little porosity, the cleaning in case of graffiti is much simpler than in wood. Available in colors, imitationwood, cream and white.

Inside walls, made of melamine panels, between the inside and outside covering there is a 30 mm thick thermal isolation with polystyrene.

All its metallic components such us hinges, fixations and nuts and bolts are made of AISI 316 stainless steel, completely necessary in marine environments.

Floor made of synthetic parquet.

Roof with thermal isolation in sandwich kind 60 mm thick (10+40+10), 10 mm wood, 40 mm high density "porexpan" and 10 mm tongue and groove in varnishing wood. The roof can be gable roof or in lacquered plate in only one slope in the 2.50 m part and its interior light sizes are 2.65 m the highest part and 2.45 m the lowest part.

Door and outside windows, it has a door of 2 x 0.80 m and telescopic lockgates to take care of the public with its wooden counter.

Electrical supply and plumbing completely recessed to avoid any act of vandalism, according to current regulations. Lightning is made with against-vandalism luminaries with a minimum of 150 lux.

Inside the beach bar unit may be added a small toilet for private use of the staff or the use of the customers with a direct door to the outside, which can be equipped with toilet bowl, sink and shower.

All the accessories inside are made of stainless steel with round edges to avoid any damage to the users. Except for the toilet bowl, which may be made of ceramic or stainless steel.

It also can be installed some wooden counters to work on, in the kitchen to place the sink, countertop, coffee maker, etc, as

well as some shelves in the bar over the lockgates to place bottles.

A part from that, it can be placed outside the unit a terrace with pergola and awnings for the customer’s comfort.

For proper installation it is only needed a flat, minimally hard surface or only support points with a size of 25 x 25 x 15 cm, leveled between them.

Installation and transport are easy and quick.

5 years guarantee against manufacture defects or rottenness
